Case Study

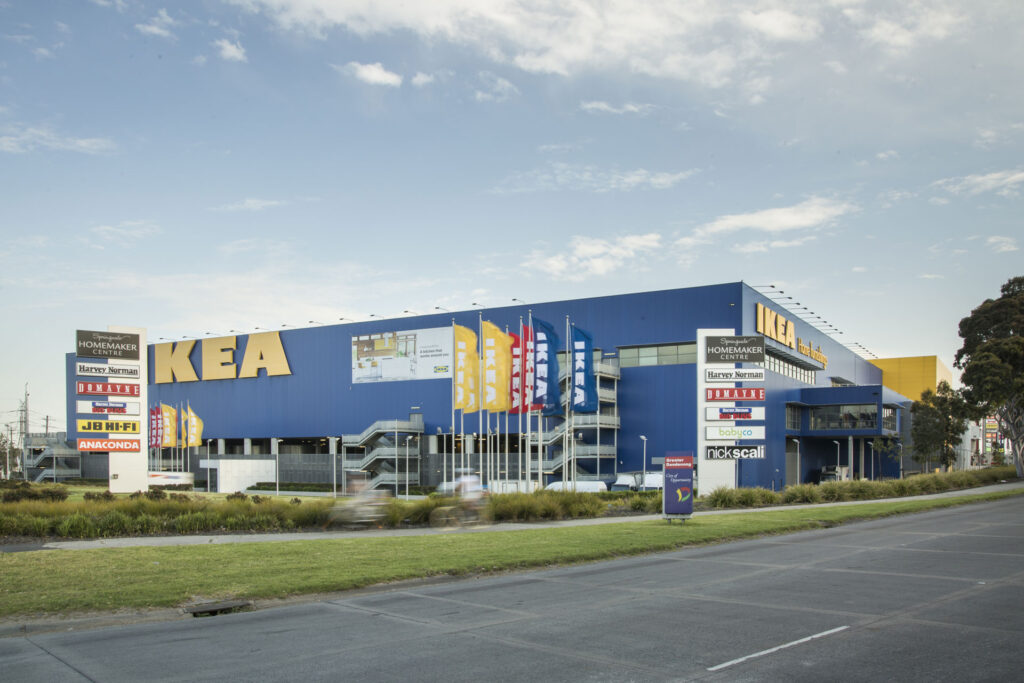

Evacuation Diagrams for IKEA Richmond – 630 Victoria St, Richmond VIC 3121
Large retail environments present unique challenges when it comes to emergency preparedness. With thousands of visitors moving through the building every week, clear and accurate evacuation information is essential to keeping people safe and ensuring the site meets its regulatory obligations.
EBC Group recently completed a comprehensive Evacuation Diagram project for IKEA Richmond, located at 630 Victoria St, helping ensure the facility maintains a high standard of emergency preparedness while remaining compliant with Australian safety requirements.
Supporting Safety in a High-Traffic Retail Environment
IKEA Richmond is one of Melbourne’s most well-known retail destinations. The store spans multiple levels and features a distinctive customer journey layout, guiding visitors through showrooms, marketplaces, food areas, and warehouse spaces before reaching the checkout.
While this layout is great for showcasing products, it also means evacuation planning must be carefully considered. In an emergency, occupants need to quickly understand where they are, which direction to move, and how to reach a safe exit point. To support these requirements, EBC Group carried out a detailed assessment of the site and produced a set of clear, compliant evacuation diagrams tailored specifically to the layout of the building.
Detailed Site Assessment and Diagram Development
Before any diagrams are produced, our team undertakes a careful review of the building to ensure the final documentation reflects the real conditions occupants will experience during an emergency. For the IKEA Richmond project, this involved:
- Reviewing building layouts and existing safety documentation
- Conducting site inspections to verify evacuation routes and exits
- Identifying the locations of fire safety equipment and essential safety measures
- Confirming assembly areas and evacuation paths
- Ensuring all diagrams align with AS 3745–2010 emergency planning standards
Large retail facilities often contain multiple entry points, storage areas, restricted access zones, and public circulation spaces. Our role is to translate that complexity into simple, easy-to-read diagrams that can be quickly understood by anyone inside the building.
Clear Guidance for Staff and Visitors
Evacuation diagrams play an important role in helping people make the right decisions during an emergency. When placed in visible locations throughout a building, they provide immediate guidance on:
- The nearest emergency exits
- Evacuation paths and travel directions
- The location of fire safety equipment
- Assembly areas where occupants should gather once outside
- The occupant’s “You Are Here” reference point
For a large retail store like IKEA Richmond, this clarity is essential. Visitors may not be familiar with the building layout, so the diagrams must be designed to communicate information quickly and effectively. By combining accurate floor plans with clear safety information, EBC Group’s diagrams help ensure occupants can identify evacuation routes quickly and move safely toward exits if an emergency occurs.
Compliance with Australian Standards
Emergency evacuation diagrams are not only a safety tool; they’re also an important compliance requirement for many commercial buildings. The diagrams developed for IKEA Richmond were designed in accordance with Australian Standard AS 3745–2010 – Planning for Emergencies in Facilities, which outlines best practices for emergency planning and evacuation documentation. Meeting these requirements helps building operators demonstrate that appropriate emergency planning measures are in place and that occupants are provided with the information they need to respond safely in an emergency situation.
Experience Delivering Safety Solutions for Major Facilities
Projects like IKEA Richmond highlight the importance of working with a team that understands both regulatory requirements and the practical realities of complex buildings. At EBC Group, we regularly deliver evacuation diagrams and building compliance solutions for a wide range of facilities, including:
- Retail centres and large-format stores
- Warehouses and logistics facilities
- Schools and educational campuses
- Commercial offices
- Hospitality and accommodation venues
- Government and public buildings
Each building presents its own challenges, which is why our approach focuses on accurate documentation, clear communication, and compliance with relevant safety standards.
Helping buildings stay prepared
Emergency preparedness is not something organisations can afford to overlook. Clear evacuation diagrams are a simple but vital component of any building’s safety strategy, ensuring occupants can respond quickly if an incident occurs. Through projects like the evacuation diagrams developed for IKEA Richmond, EBC Group continues to support organisations across Australia with practical, reliable compliance solutions that help keep people safe.
If you are responsible for managing a commercial building, retail facility, or workplace, our team can assist with professional evacuation diagrams, essential safety measures documentation, and broader building compliance services tailored to your site.
